net yet find the root cause, here's some memos: 1. no underrun arround 14:37 2. SSMPoller: E#3204 parser error isn't special 3. tm_read_rssi_cb: device: 05:a9:b1:16:0a:52, rssi value = 0 at 14:36 and 14:38, but some negative values at 14:37 |
|
|
Hi Mr. Younkwang, I can't find some clue from the log, only that the rssi is a little bit lower at 14:37 but I don't think that's the cause. Could we monitor this issue and maybe check the rssi value when it happen next time? |
|
|
Hi Jim Chen Okay, we'll do a little more testing on this issue. I'll update you again when I get an additional log next time. Thank you YK.Jung |
|
|
Hi Jim Chen A similar issue has been reported at VoC. Jira link is below https://jira.skbroadband.com/browse/BTVV-2872 - STB_MAC: d4:1b:81:fe:ab:da - SPEAKER : Sony / SRS-XB23 Please check it The status of PLAY in the log is changing frequently and UNDERFLOW is occurring. please review it. =========================================================================================================================================== 06-25 13:31:54.676 D 4794 4794 BluetoothConnectionManager: [ mBluetoothReceiver ] action= .ACL_CONNECTED, SRS-XB23 , deviceBoundState= 12, conncetionState= -1 06-25 13:31:57.796 D 4794 4794 BluetoothConnectionManager: [ mBluetoothReceiver ] action= .CONNECTION_STATE_CHANGED, SRS-XB23 , deviceBoundState= 12, conncetionState= -1 06-25 13:31:57.994 D 4794 4794 BluetoothConnectionManager: [ mBluetoothReceiver ] action= .BOND_STATE_CHANGED, SRS-XB23 , deviceBoundState= 11, conncetionState= -1 06-25 13:31:58.044 D 4794 4794 BluetoothConnectionManager: [ mBluetoothReceiver ] action= .PAIRING_REQUEST, SRS-XB23 , deviceBoundState= 11, conncetionState= -1 06-25 13:32:00.661 D 4794 4794 BluetoothConnectionManager: [ mBluetoothReceiver ] action= .BOND_STATE_CHANGED, SRS-XB23 , deviceBoundState= 12, conncetionState= -1 06-25 13:32:00.777 D 4794 4794 BluetoothConnectionManager: [ mBluetoothReceiver ] action= .CONNECTION_STATE_CHANGED, SRS-XB23 , deviceBoundState= 12, conncetionState= -1 06-25 13:32:00.970 I 3941 4459 A2dpStateMachine: Connected: started playing: 98:52:3D:56:F2:80 06-25 13:32:00.970 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:NOT_PLAYING->PLAYING 06-25 13:32:00.998 I 3941 4459 A2dpStateMachine: Connected: stopped playing: 98:52:3D:56:F2:80 06-25 13:32:00.998 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:PLAYING->NOT_PLAYING 06-25 13:32:00.998 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:00.998 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 15 06-25 13:32:01.076 E 3471 3742 audio_virtual_buf: mixer_16bit_thread underrun happens read=107664709 write=16000000 diff=91664709 06-25 13:32:01.078 I 3941 4459 A2dpStateMachine: Connected: started playing: 98:52:3D:56:F2:80 06-25 13:32:01.078 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:NOT_PLAYING->PLAYING 06-25 13:32:01.106 W 3941 4460 bt_stack: [WARNING:client_interface.cc(464)] ReadAudioData: 1024/1024 no data 10 ms 06-25 13:32:01.106 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:01.106 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 15 06-25 13:32:01.126 W 3941 4460 bt_stack: [WARNING:client_interface.cc(464)] ReadAudioData: 1024/1024 no data 10 ms 06-25 13:32:01.126 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:01.126 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 30 06-25 13:32:01.130 I 3941 4459 A2dpStateMachine: Connected: stopped playing: 98:52:3D:56:F2:80 06-25 13:32:01.130 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:PLAYING->NOT_PLAYING 06-25 13:32:01.209 I 3941 4459 A2dpStateMachine: Connected: started playing: 98:52:3D:56:F2:80 06-25 13:32:01.209 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:NOT_PLAYING->PLAYING 06-25 13:32:01.256 D 3812 3924 BluetoothA2dp: getCodecStatus(98:52:3D:56:F2:80) 06-25 13:32:01.260 D 3941 3957 A2dpService: getCodecStatus(98:52:3D:56:F2:80) 06-25 13:32:03.193 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:03.194 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 88 06-25 13:32:03.204 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:03.205 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 108 06-25 13:32:03.216 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:03.216 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 117 06-25 13:32:03.234 I 3941 4459 A2dpStateMachine: Connected: stopped playing: 98:52:3D:56:F2:80 06-25 13:32:03.234 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:PLAYING->NOT_PLAYING 06-25 13:32:03.236 W 3941 4460 bt_btif_a2dp_source: btif_a2dp_source_read_callback: UNDERFLOW: ONLY READ 0 BYTES OUT OF 1024 06-25 13:32:03.236 W 3941 4460 a2dp_vendor_ldac_encoder: a2dp_ldac_encode_frames: underflow 132 06-25 13:32:06.335 I 3941 4459 A2dpStateMachine: Connected: started playing: 98:52:3D:56:F2:80 06-25 13:32:06.335 D 3941 4459 A2dpStateMachine: A2DP Playing state : device: 98:52:3D:56:F2:80 State:NOT_PLAYING->PLAYING ================================================================================================================= Thank you YK.Jung |
|
|

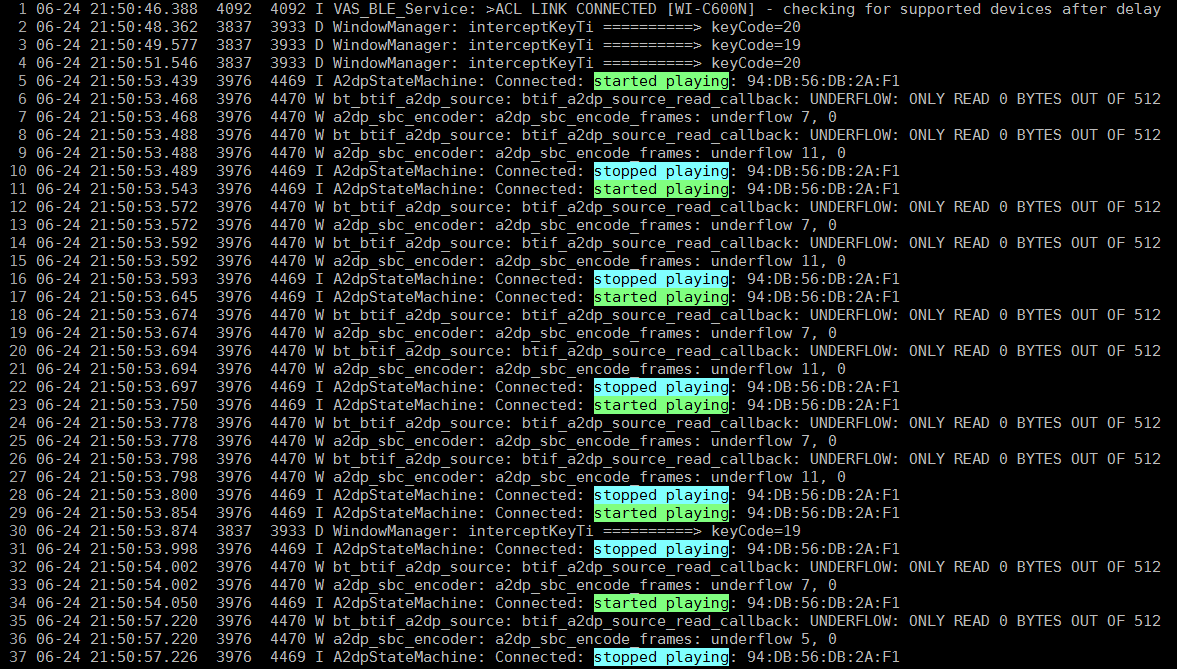

Hi Mr. there's a sound-effect when moving the focus. when it occurs, we'll see a2dp play message, and after 3 seconds, we'll see a2dp stop message. within a short peroid, when the audio route changes to the BT-device, thiese stop/start message will delayed a little bit. that's what we see in the log. and, when we stop a2dp, underflow message shows. a simple way to reproduce the log: 1. pair smart3 with a bt-speaker (or earphone), power off the bt-speaker 2. keep moving the focus, power on the bt-speaker 3. when bt-speaker auto connected, the log reproduced so , I think "state change" and "underflow" is not the root cause WeChat Screenshot_20210629164104.png (122,211 bytes) |
|
|
Hi Mr. from Brent's video, it looks like a sampling rate issue. from the log the A2DP codec config is set to LDAC and 96KHz D A2dpStateMachine: A2DP Codec Config: {codecName:LDAC,mCodecType:4,mCodecPriority:5001,mSampleRate:0x8(96000),mBitsPerSample:0x4(32).... I'll check this part. Please help to get log "android 9 pair to XB23" for me. |
|
|
|
|
|
Hi Brent, Please check if the apk fix the sound. 1. adb install -r Bluetooth.apk 2. reboot smart3 3. check the output from XB23 |
|
|
Hi Brent, 1. adb uninstall com.android.bluetooth 2. unzip Bluetooth.7z 3. adb stuffs (connect, root, reconnect remount) 4. push 4 files (follow pushbt.sh) 5. reboot and check XB23 |
|
|

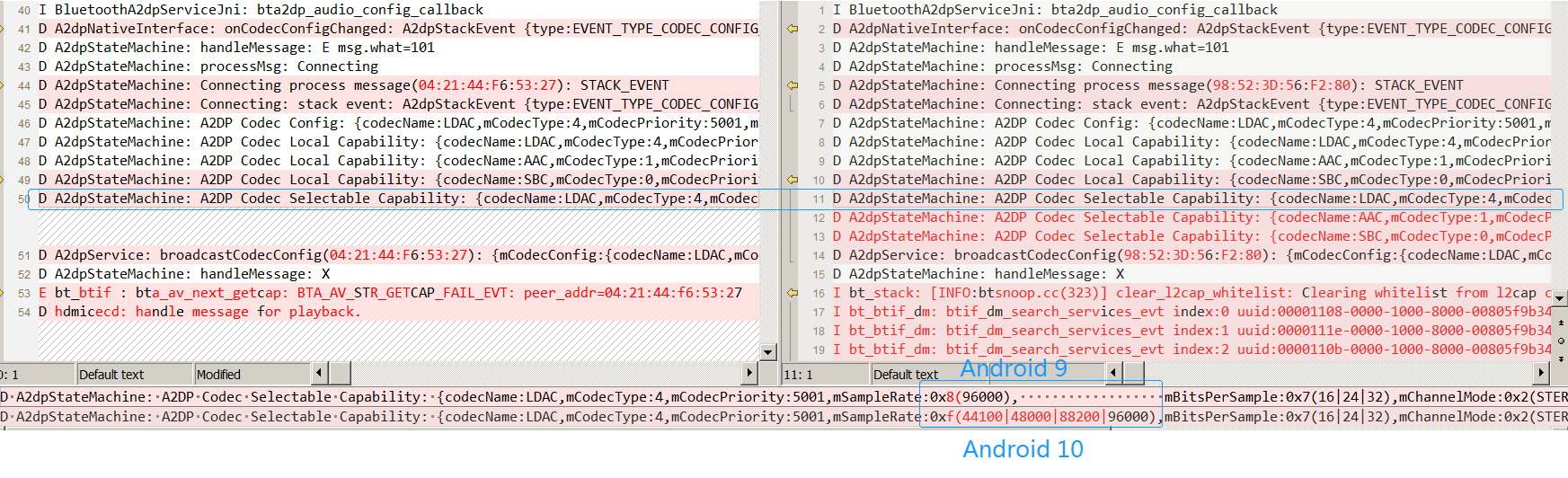

Hi, Mr., The above apk is to remove LDAC support. Without LDAC, the A2DP codec would fallback to AAC or SBC. And the test result was ok with XB23 (this would be the worstcase workaround solution) Now still tracing how the codec-related-fields value assigned, especially the LDAC sampling rate. ldac_samp_rate.png (115,622 bytes) |
|
|

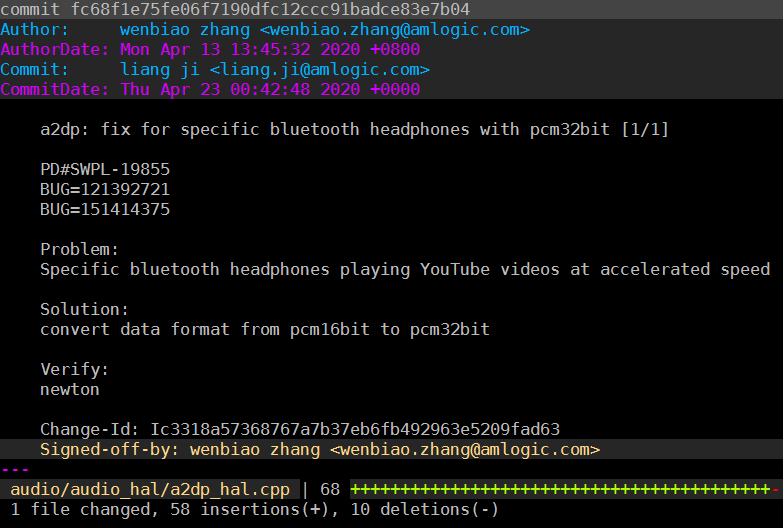

Hi Mr. Here's the patch that could fix the issue. it is from amlogic's newer BSP. It looks like the data format is wrong in some condition and AML fix it by converting the format to the correct one. In case that all the vendor share the common SDK "skb-amandroidq/aml_orig_hs30" I suggest this patch to be applied to common SDK by amlogic A test image is available here: /release_by_fxn/smart3_test/BTVD15920 - LDAC Verified ok with my sony device. When test with it, please make sure they paired with LDAC selected (check the existence of following logcat) A2dpStateMachine: A2DP Codec Config: {codecName:LDAC,mCodecType:4,mCodecPriority:5001 WeChat Screenshot_20210726145424.png (28,077 bytes) |
|
|
|
|
|
Hi Jim Chen I did BT test with this FW and sony BT Speaker(SRS-XB23) ============================================================ 19:41:50 BT speaker on 19:41:54 BT speaker is connected to STB ==> A slight audio drop occurs occasionally 19:44:00 BT speaker off 19:44:30 BT speaker on 19:44:35 BT speaker is connected to STB ==> A slight audio drop occurs occasionally ====================================================== I attached the test log information. Please check this attached log . Thank you YK.Jung |
|
|

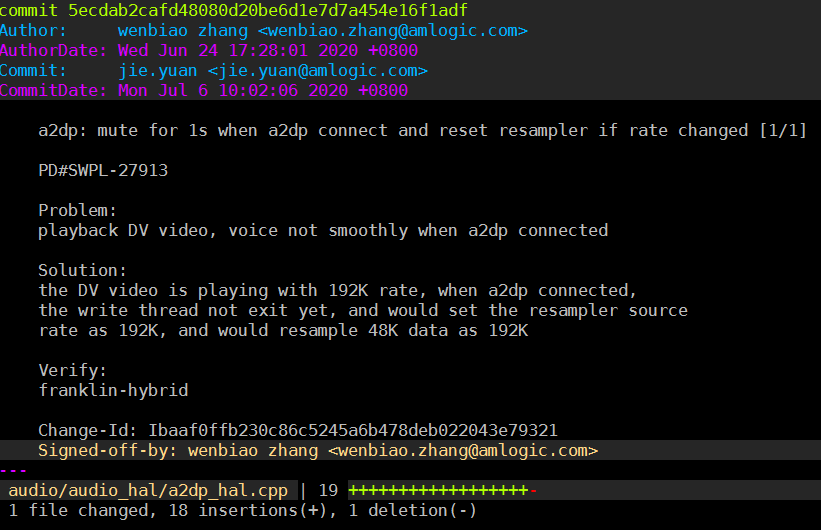

Hi Mr. I'm not sure what is slight audio drop, could you capture a short video for me? But I did hear some audio glitch when playing the 1ktone audio and powering on the BT device (about 10~20% rate) Here's a patch also found in amlogic's newer BSP. The 1st second audio is muted, I tried it and looks my glitch was fixed. here's the way to update STB to include this patch, on PC: adb root adb remount adb push audio.primary.amlogic.so /vendor/lib/hw/ on STB: killall audioserver (or reboot) WeChat Screenshot_20210728225416.png (31,595 bytes) |
|
|
Hi Jim I honestly don't know if this is an issue right now. Sometimes audio drops occur and sometimes they don't. ( audio drop occurs at a distance of 1M to 3M from STB. ) The problem is that the environment I'm testing here itself can be caused by interference because there are too many BT devices. First of all, the QA manager will do a test at home over the weekend. If there is an issue there, I will discuss it again then. Thank you YK.Jung |
|
|
Hi jim Test FW : v15.531.1l ( build date : 20210930 ) During the sleep/wakeup test, audio drop issue occurred. Even if I switch channels, audio drop continues to occur. I attached the video file(KakaoTalk_20211001_101111607.mp4) and log file ( BFX-AT100_20211001-095834.zip ) ======================================================================= .. 10-01 10:00:13.940 I 3576 8395 RendererPolicyBase_0: set_audioStrategy: AUDIO_STRATEGY_RESAMPLE ==> AUDIO_STRATEGY_DROP, diffUs:-605.062000 ms 10-01 10:00:13.940 I 3576 8395 RendererPolicyBase_0: restore audio sink speed from 1.10 to 1.00 10-01 10:00:13.959 I 3576 8395 RendererPolicyBase_0: set_audioStrategy: AUDIO_STRATEGY_DROP ==> AUDIO_STRATEGY_RESAMPLE, diffUs:-496.264000 ms 10-01 10:00:13.959 I 3576 8395 RendererPolicyBase_0: audio late than 496.26 ms, adjust audio sink speed to 1.10, factor:0.10 10-01 10:00:16.668 I 3576 8395 RendererPolicyBase_0: set_audioStrategy: AUDIO_STRATEGY_RESAMPLE ==> AUDIO_STRATEGY_DROP, diffUs:-602.397000 ms 10-01 10:00:16.668 I 3576 8395 RendererPolicyBase_0: restore audio sink speed from 1.10 to 1.00 10-01 10:00:16.691 I 3576 8395 RendererPolicyBase_0: set_audioStrategy: AUDIO_STRATEGY_DROP ==> AUDIO_STRATEGY_RESAMPLE, diffUs:-497.171000 ms 10-01 10:00:16.691 I 3576 8395 RendererPolicyBase_0: audio late than 497.17 ms, adjust audio sink speed to 1.10, factor:0.10 .. ======================================================================= Please check it Thank you YK.Jung KakaoTalk_20211001_101111607.mp4 (10,402,099 bytes) |
|
|
Hi jim Please put this issue on hold . The AMLOGIC test patch is applied to this FW. It may occur due to that, If this issue occurs again later, I will mention it again then. Thank you YK.Jung |
|
|
SoC vendor fixed it |
